Roof renovation with clay tiles

Elite

Timeless class

Elegance and harmony, the light shades of the ELITE range give grace and solemnity to the most prestigious buildings.
The varied choice of light, terracotta and burgundy shades and the possibility of giving a typical antique appearance, make ELITE the perfect range for upgrading an old building, or for those wishing to build a new home that is inspired by traditional style.
Grace, elegance and class: the ELITE range makes every building stand out with the beauty and refinement of style.

Download Tecnichal Sheet

PLUS

resistente e duraturo HARD-WEARING
AND LONG-LASTING

colori naturali NATURAL COLOR RANGE

DIMENSIONS (mm)

Bent tile 450 mm		Bent tile 500 mm
(AxB / CxSp) 450×180 / 140×13		(AxB / CxSp) 500×210 / 170×14
Longitudinal pitch ~360 mm		Longitudinal pitch ~410 mm
Cross pitch 195 mm		Cross pitch 230 mm

Products
Realizations

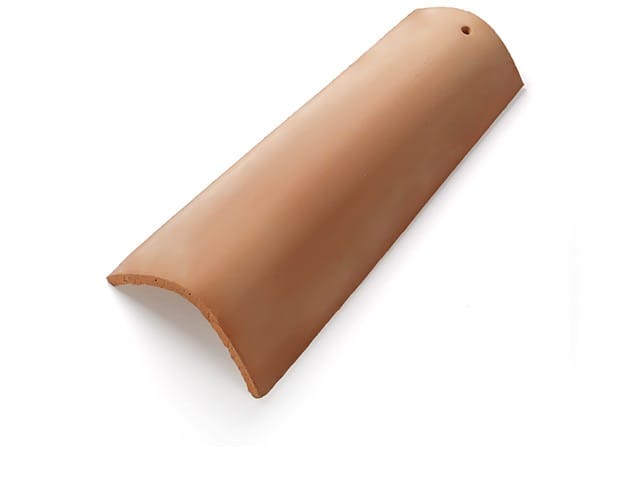

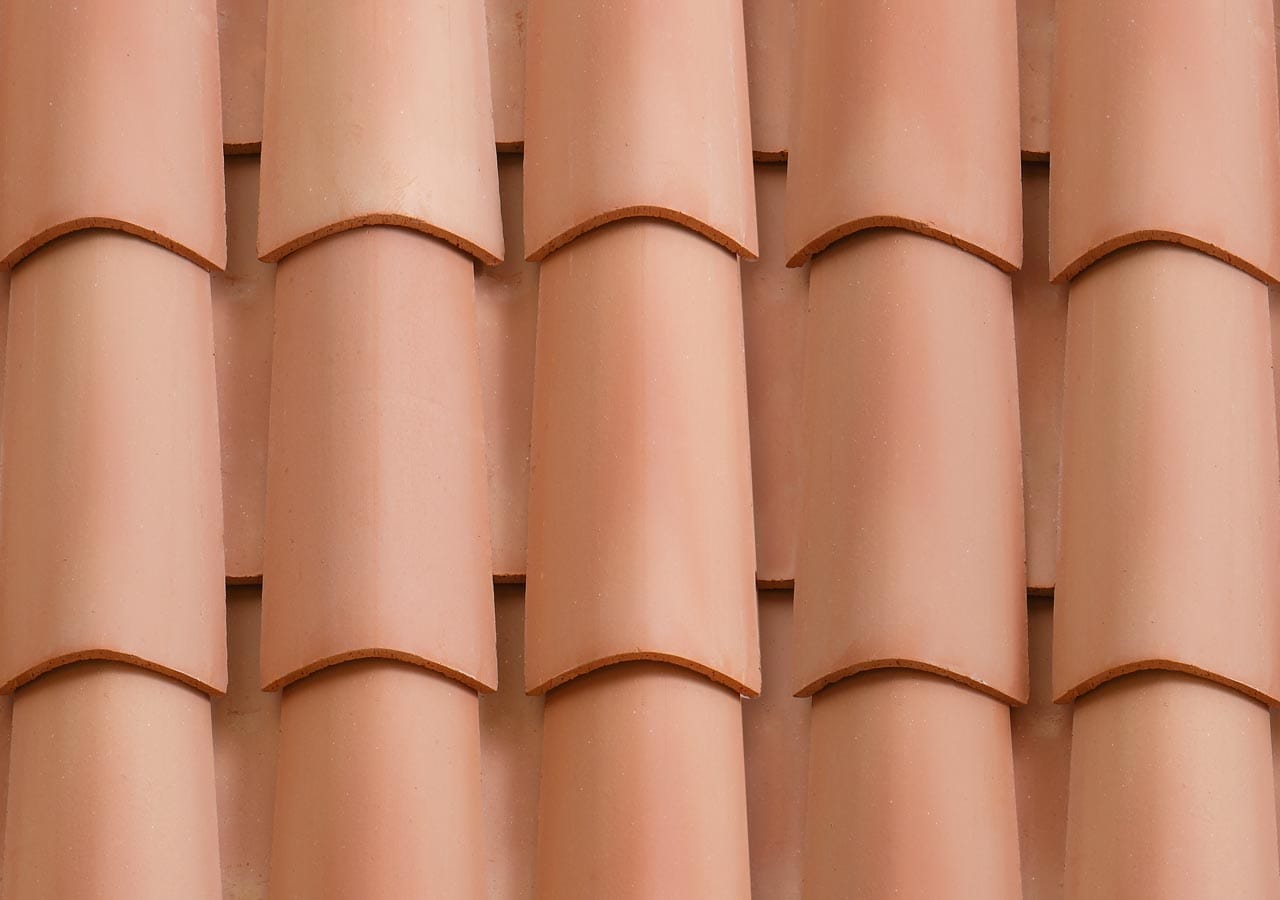

Chiaro

da 45 cm
COD. C2 LS 0 – C2 LS 1
DIMENSIONS mm (AxB / BxSp)
450×180 / 140×13
PIECES for pallet 288 WEIGHT for pallet ~ 620
PIECES for sqm 30 WEIGHT ~ 1,95

Coppo rigato
COD. C2 RG 0
mm (AxB / BxSp)
450×180 / 140×13
PIECES for pallet 288 WEIGHT for pallet ~ 620
PIECES for sqm 30 WEIGHT ~ 1,95

Mediterraneo da 50 cm
COD. 52 LS 0
mm (AxB / BxSp)
500×210 / 170×14
PIECES for pallet
210
WEIGHT for pallet ~ 600
PIECES for sqm
22
WEIGHT ~ 2,60

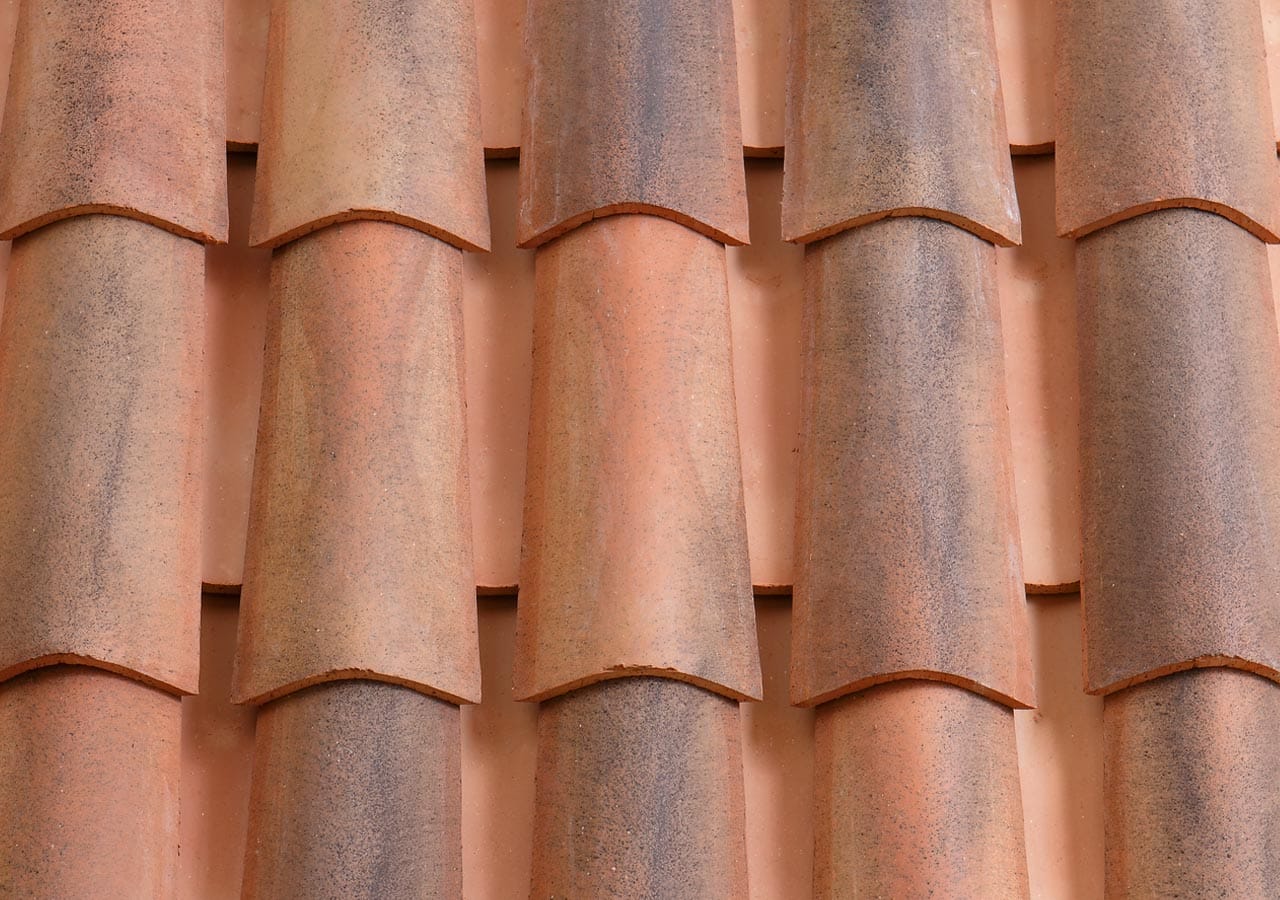

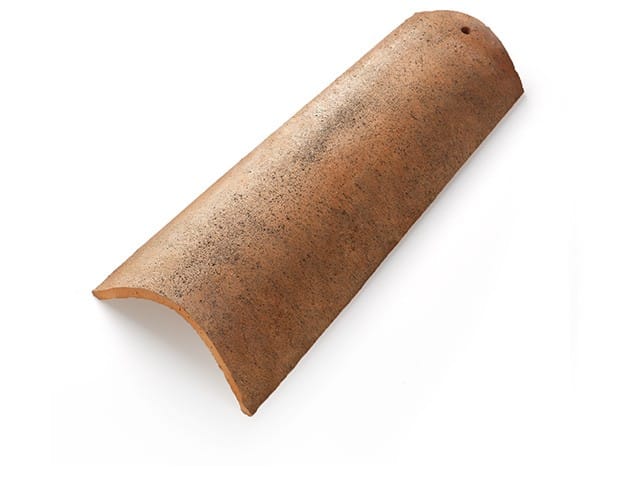

Chiaro antico

COD. C2 AN 1
DIMENSIONS mm (AxB / BxSp) 450×180 / 140×13
PIECES for pallet 288 WEIGHT for pallet ~ 620
PIECES for sqm 15 WEIGHT ~ 1,95

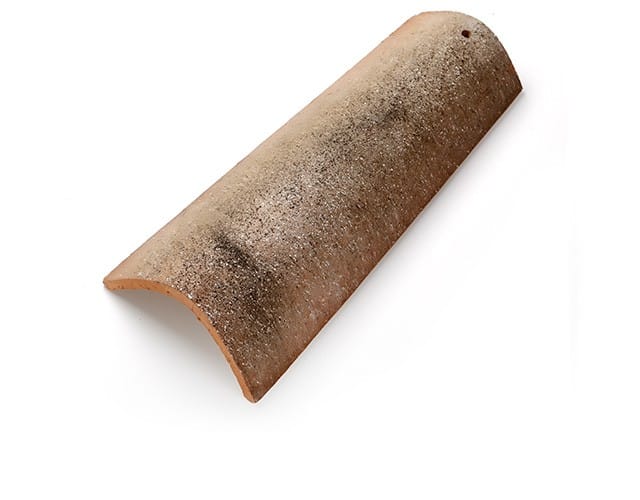

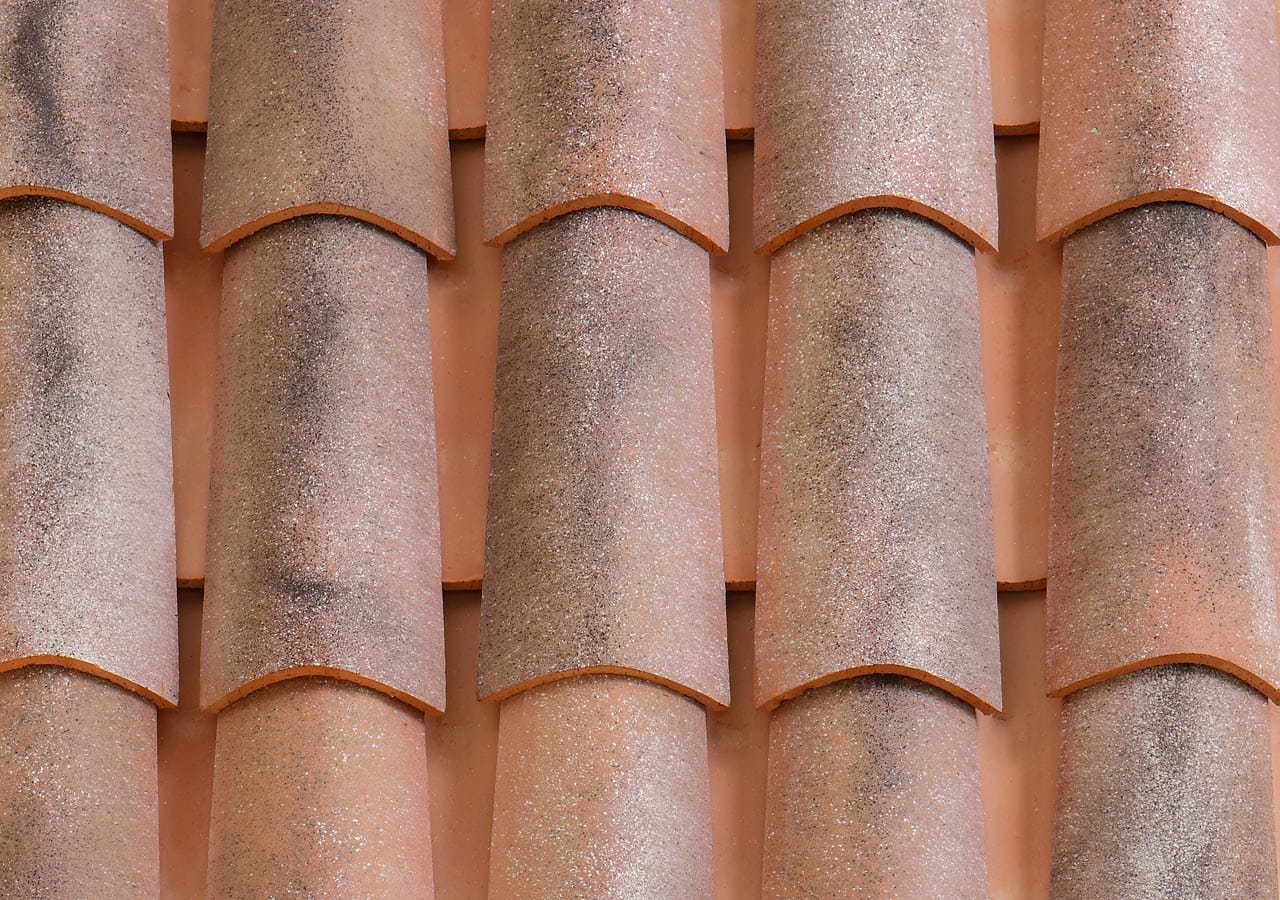

Bordeaux chiaro

da 45 cm
COD. C2 BX 1
DIMENSIONS mm (AxB / BxSp) 450×180 / 140×13
PIECES for pallet
288
WEIGHT (Kg) for pallet ~ 620
PIECES for sqm
15
WEIGHT (Kg) ~ 1,95

da 50 cm
COD. 52 BX 0
mm (AxB / BxSp)
500×210 / 170×14
PIECES for pallet
210
WEIGHT (Kg) for pallet ~ 600
PIECES for sqm
11
WEIGHT (Kg) ~ 2,60
